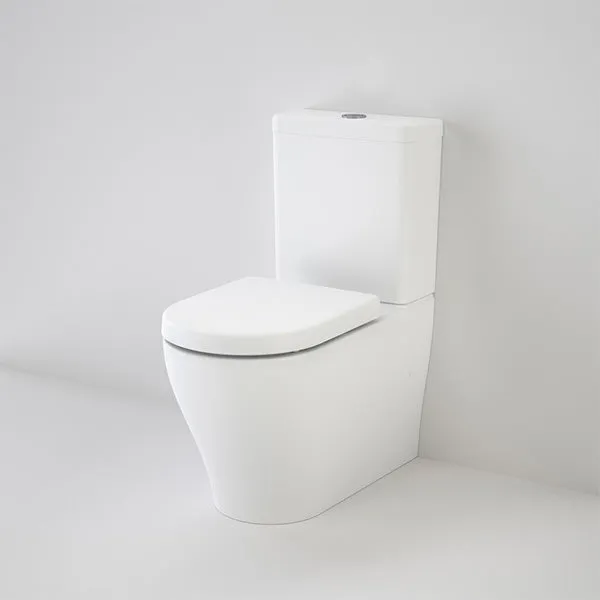

Caroma Luna Wall Faced Toilet Suite

A wall-faced suite with a glazed box rim and trap, sitting flush to the wall so there's no gap behind it collecting dust. The lines are deliberately plain, which is part of why it works in so many rooms, and the seat lifts off when you want to clean properly underneath it. A universal trap covers S and P trap set-outs, and the Uni-Orbital connector allows the pan position to be shifted within a 50mm radius, which is often the difference between a straightforward install and a difficult one.

• Sits flush to the wall with no gap behind, so dust and grime have nowhere to gather
• Glazed box rim and trap for easier cleaning and better hygiene control
• Removable seat, so you can actually get at the pan when cleaning
• Soft closing seat, which puts an end to the lid slamming in the middle of the night
• Universal trap suits S or P trap installations, and the patented Uni-Orbital connector extends the set-out to any point within a 50mm radius for tricky plumbing
• A cost effective choice for a renovation; if you want a rimless bowl, the Cleanflush Luna suite is the step up in the range
• Supported by a 20 year warranty

Specifications

WELS water efficiency: 4 star WELS ratedWELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)WELS registration number: L04442Watermark certification: All Caroma toilet pans, cisterns and components are Watermark CertifiedConstruction material: Vitreous ChinaFinish/coating: WhiteOverall height: 805mmOverall width: 373mmPan height: 395mmPan Projection: 670mmTrap: Universal S or P trapSet out: S Trap 60 - 185mm, P Trap 185mmWater inlet location: Back or bottom inlet available, select from drop down listWarranty: 20 years

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

What's In The BoxPanCaroma Luna pan in white, made from quality Vitreous China. Includes fixing kit and Uni-orbital connector, Caroma's patented waste trap connector for flexible installations, extends any position up to 50mm radius.CisternCaroma Luna cistern in white, made from quality Vitreous China and features an ultra-quiet inlet valve. Includes round dual flush buttons in chrome.SeatCaroma Xena soft-close hinge seat in white, with a quick-release feature for ease of cleaning.Downloads

Download the specification sheet below:

Caroma Luna Wall Faced Toilet Suite

Download the installation instructions below:

Caroma Luna Wall Faced Toilet Suite - Cistern Install

Caroma Luna Wall Faced Toilet Suite - Pan Install
