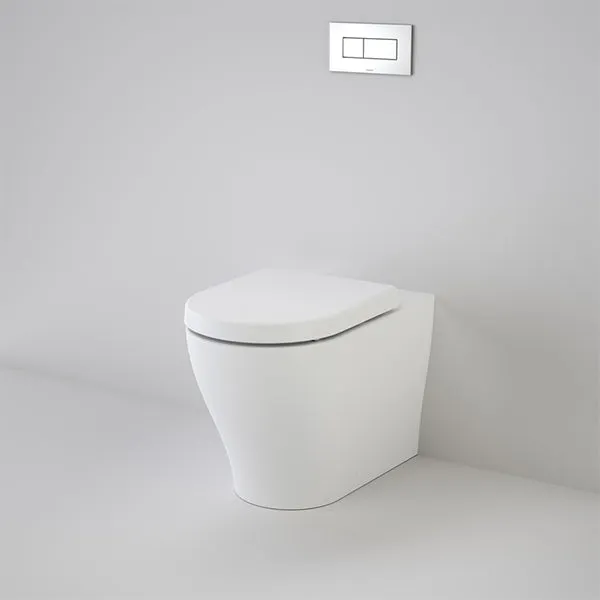

Caroma Luna Cleanflush Invisi Series II Wall Faced Toilet Suite

A wall-faced suite on the Invisi Series II in-wall cistern, which puts the cistern out of sight and gives the room back a little breathing space. The Cleanflush rimless bowl has no lip to hide grime, and the pan's minimal lines and tight gaps mean the whole thing can be wiped down properly. The cistern can go into a wall with a 90mm cavity, under a benchtop, or into a duct or ceiling where it can still be reached for service.

• Cleanflush rimless technology gives the bowl a full clean with nowhere for grime to sit
• Concealed cistern frees up visual space and can be installed in a wall with a 90mm cavity, under a benchtop, or in a duct or ceiling
• Cistern stays accessible for servicing, so a future repair doesn't mean pulling tiles off
• Minimal lines and gaps make the pan quick to wipe down
• Flush button options sold separately, so the visible hardware can match your tapware or accessories
• Supported by a 20 year warranty

Specifications

WELS water efficiency: 4 star WELS ratedWELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)WELS registration number: L05497Watermark certification: All Caroma toilet pans, cisterns and components are Watermark certifiedConstruction material: Vitreous China PanFinish/coating: Gloss white ceramic glazeOverall height: 940mmPan height: 395mm (excluding seat)Projection from wall: 610mmOverall width: 350mm (pan), 400mm cistern (in wall)Trap: Universal S or P trapSet out: S Trap 60 - 160mm, P Trap 185mmWater inlet location: N/AWarranty: 20 years

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

What's In The Box

Pan Caroma Luna Cleanflush pan in white, made from quality Vitreous China. Includes fixing kit and Uni-orbital connector, Caroma's patented waste trap connector for flexible installations, extends any position up to 50mm radius.

Cistern Caroma Invisi Series II 4.5/3L behind the wall cistern. Suitable for inwall, induct, undercounter or induct/in ceiling installations.

Seat Caroma Xena soft-close hinge seat in white, with a quick-release feature for ease of cleaning and thin seat for a low profile look.

Downloads

Download the specification sheet below:

Caroma Luna Cleanflush Invisi Series II Wall Faced Toilet Suite

Download the installation instructions below:

Caroma Luna Wall Faced Toilet Install
